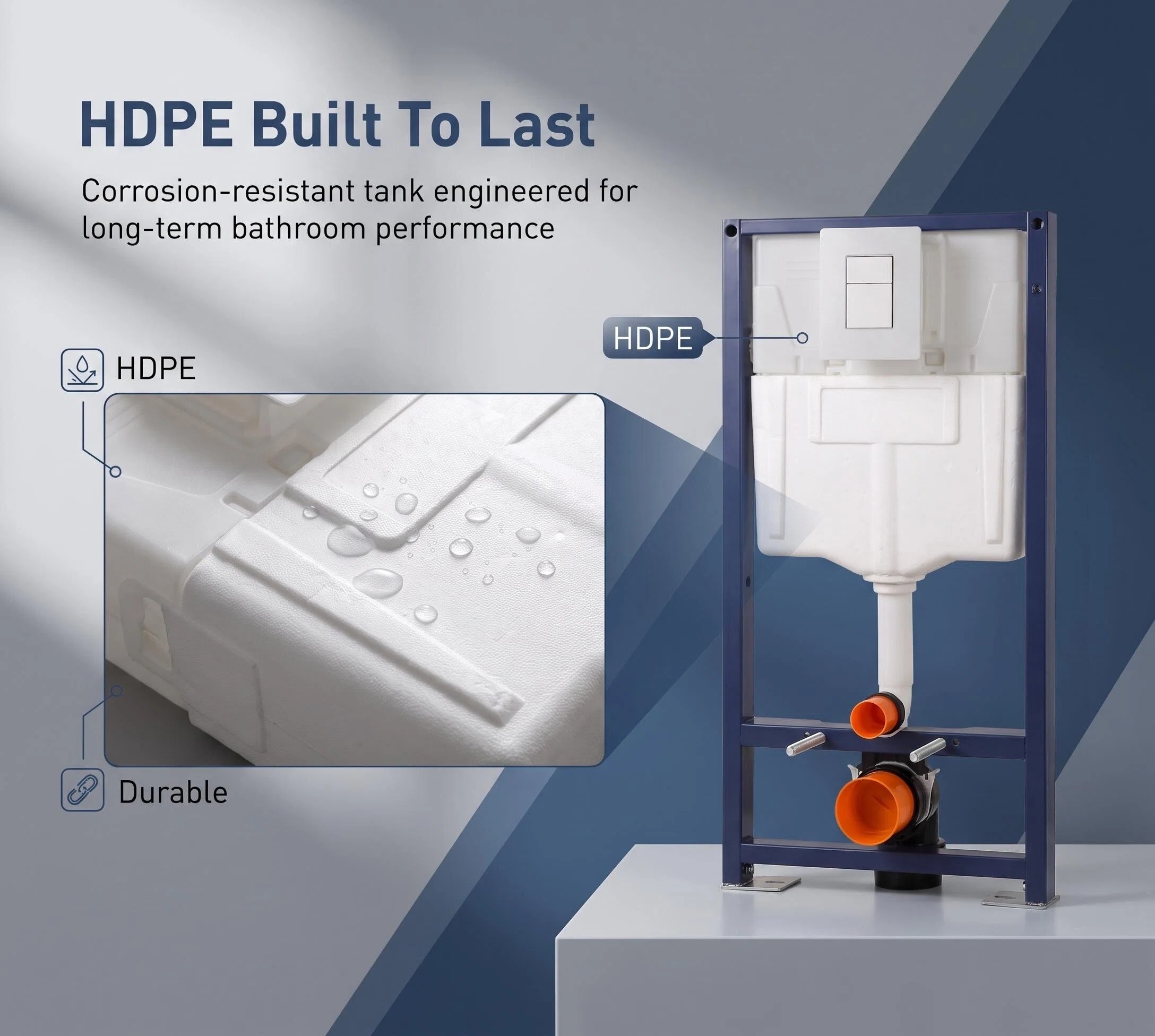

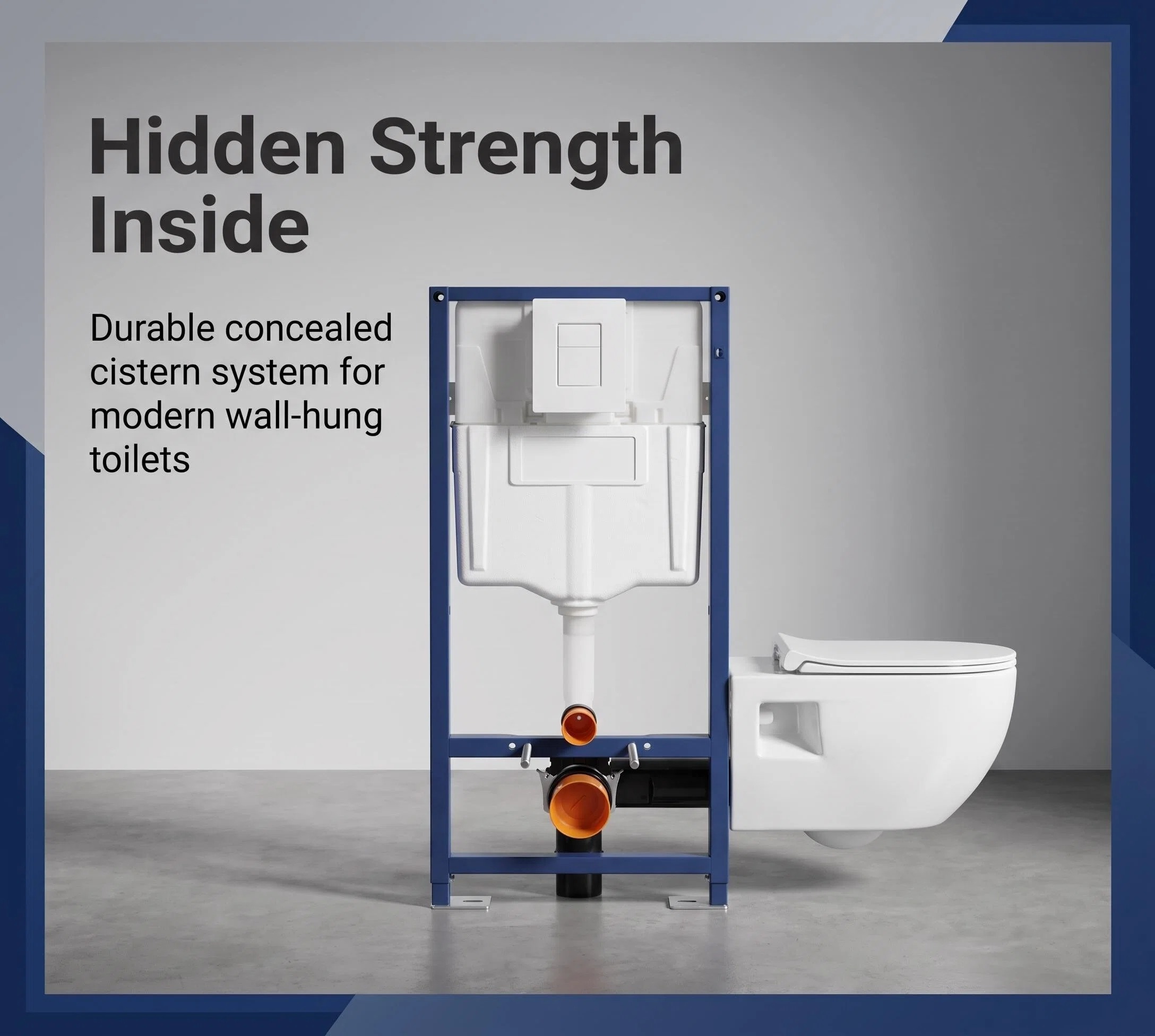

The G13-901 series wall-mounted concealed cistern system is built for commercial and residential bathroom projects, featuring durable HDPE tank and reinforced steel frame for long-term reliable performance.

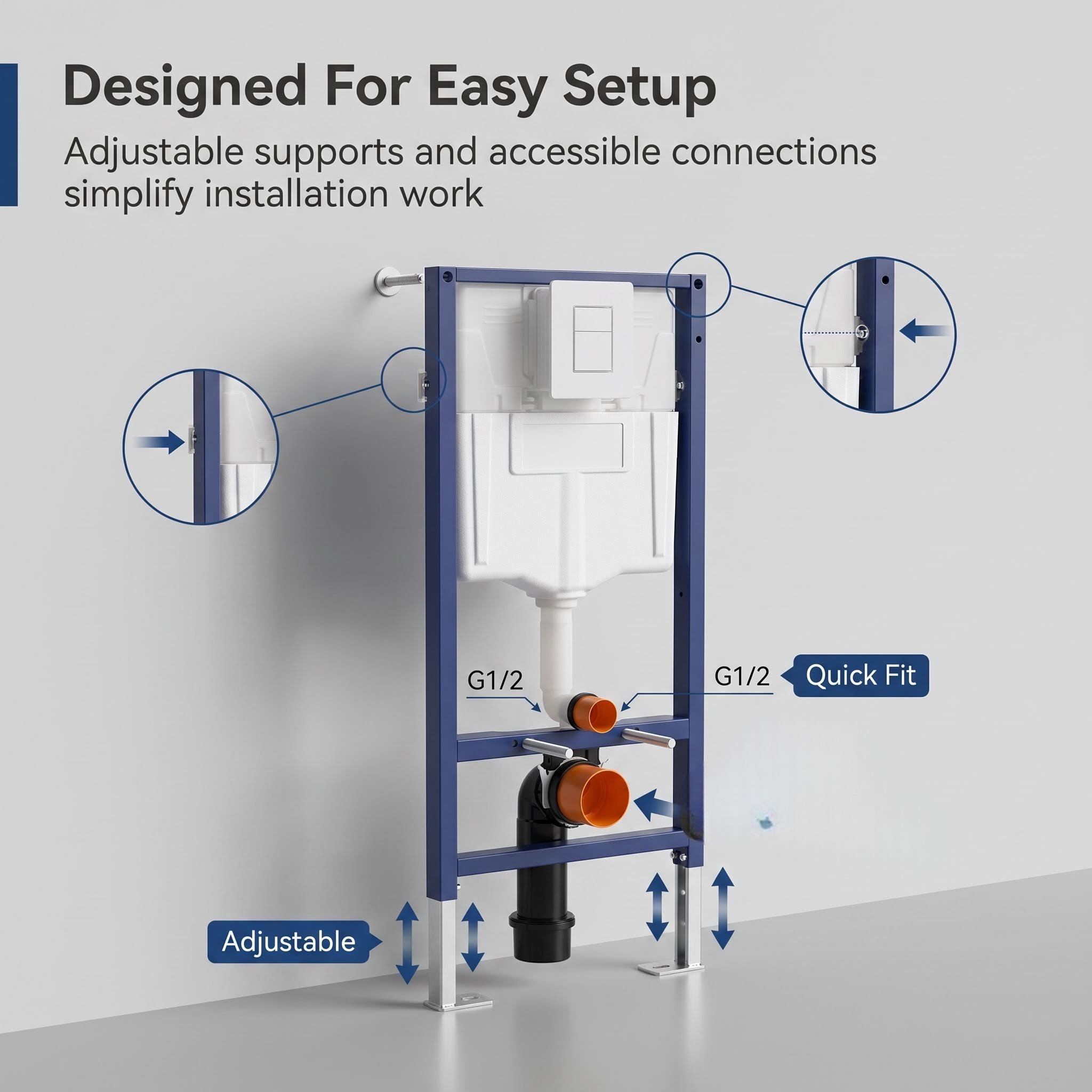

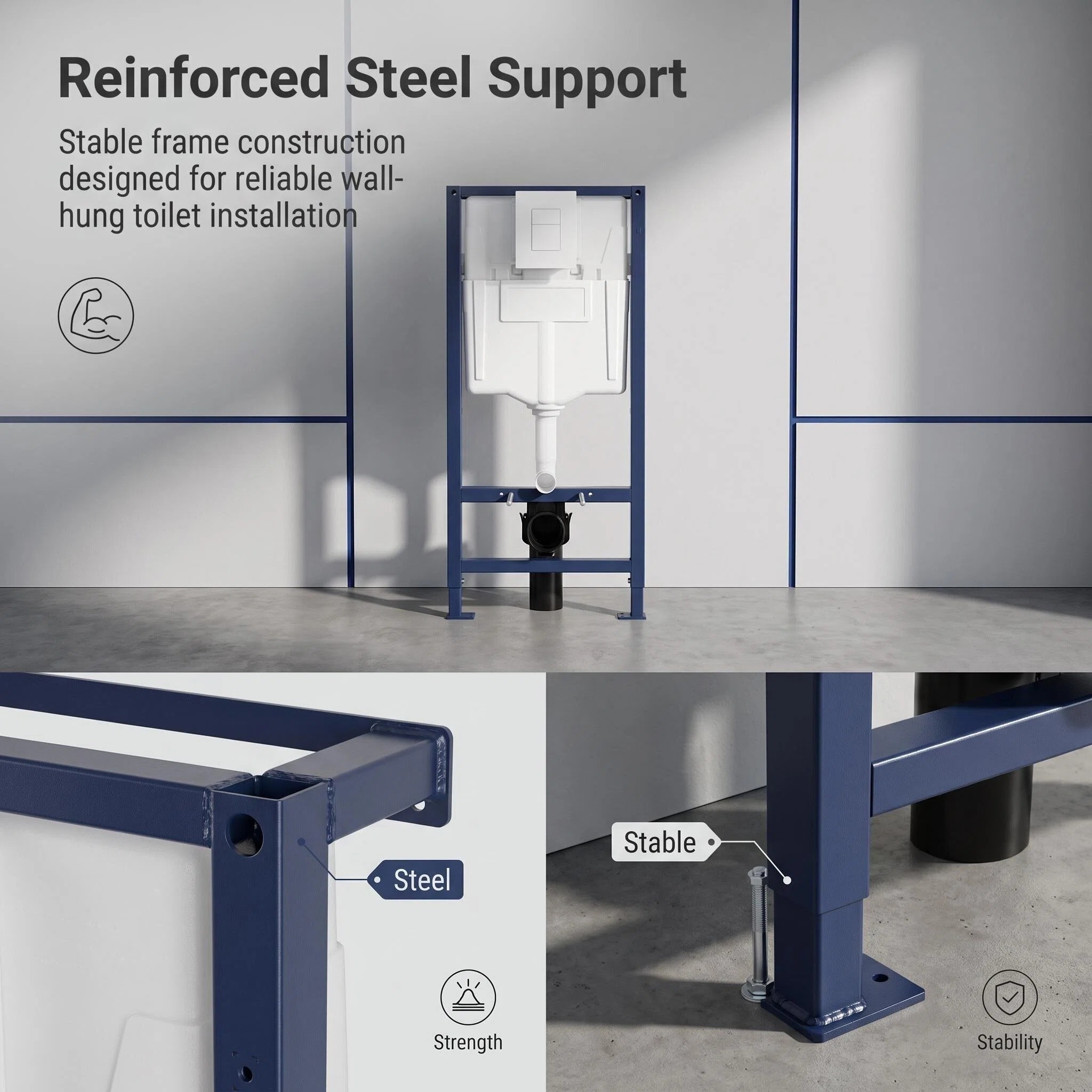

### Key Features – 3L / 8L dual flush design, high-efficiency flushing with flow rate 2.2-2.4L/s – One-piece HDPE molded water tank, durable for 50 years service life – All copper angle valve / PPR hot melt connection, reliable anti-leakage – EPS insulation material for noise reduction, operating noise ≤ 55dB – 30*50mm steel mounting frame, 400kg maximum load capacity – Height adjustable range 0-200mm, 300mm retractable foot for flexible installation – Functional parts lifespan ≥ 200,000 flushes – Compatible with standard flush panels, supports custom panel design

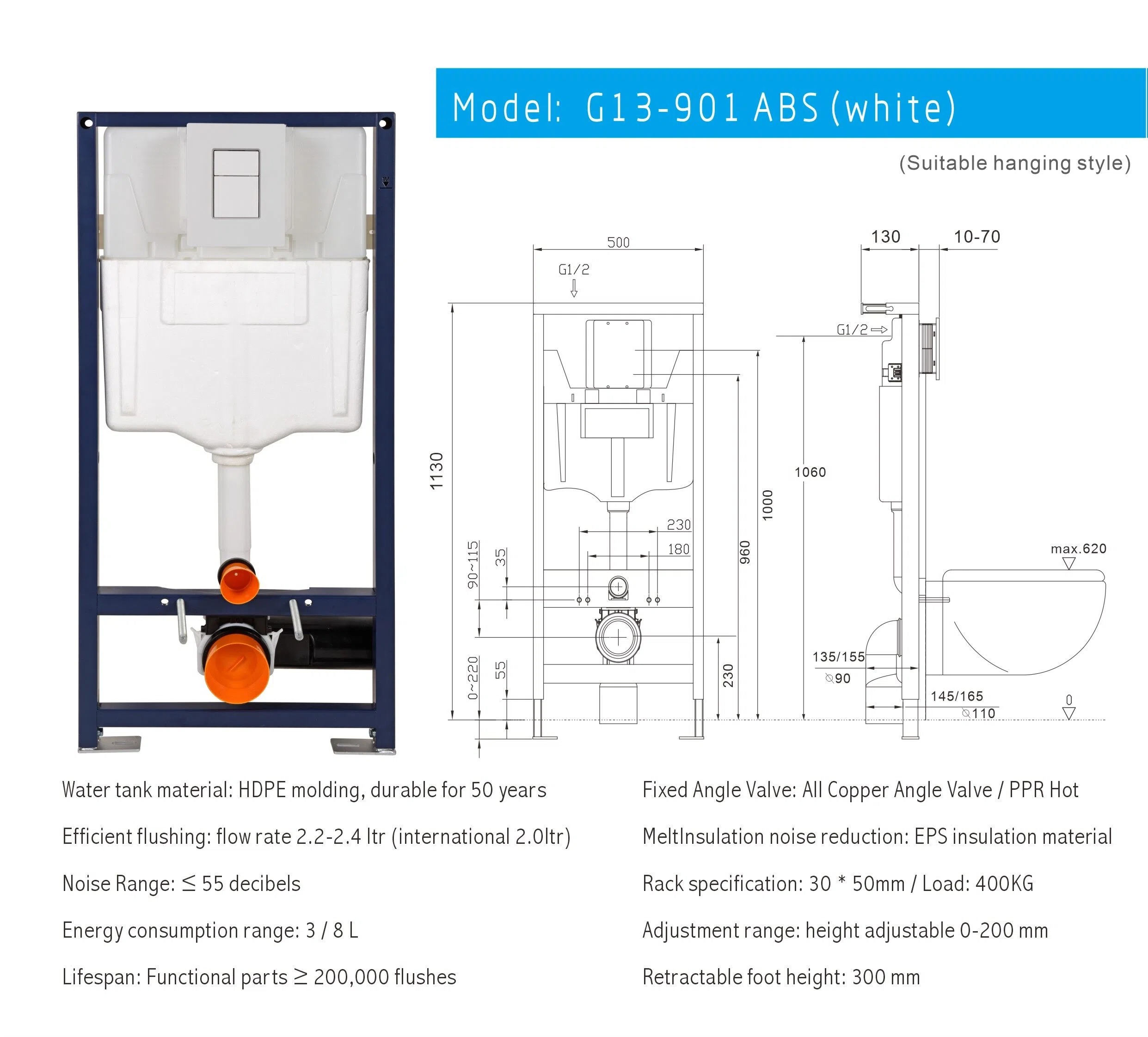

Technical Specifications – Model: G13 Series – Tank Material: One-piece HDPE molding – Frame Material: Powder-coated steel, 30*50mm specification – Flush Volume: 3L (half flush) / 8L (full flush) – Flushing Flow Rate: 2.2-2.4 L/s – Inlet Valve: All copper angle valve / PPR hot melt – Noise Level: ≤ 55 dB – Load Capacity: Max. 400 kg – Height Adjustment: 0-200 mm – Retractable Foot Height: 300 mm – Installation: In-wall cavity mounting – Certification: ISO 9001, EN 14055 compliant
### Packaging & Delivery – Standard export 5-layer carton with EPE foam protection – MOQ: 100 sets – Lead time: 15 – 25 days after deposit confirmed – Loading Port: Foshan / Shenzhen
### OEM & ODM Service We support custom logo printing, flush panel design, color finish and packaging. Welcome wholesale and project orders from Africa, Middle East and worldwide markets.
